NOREX Traffic Signal Lights HEAD

Series: NOREX Traffic Signal Lights HEAD

Unite Series: NOREX

Category: Traffic Light Head

Code: NOREX 3, NOREX 2, NOREX 1

General Features:

Horizontal and vertical installation

Possibility to combine with Ø 100 / 200 / 300 transmitters

Different housing colour: BLACK, ORANGE

Can be installed horizontal or vertical lens

High flux reflector technology and central light source

Unrivaled reading contrast

Products

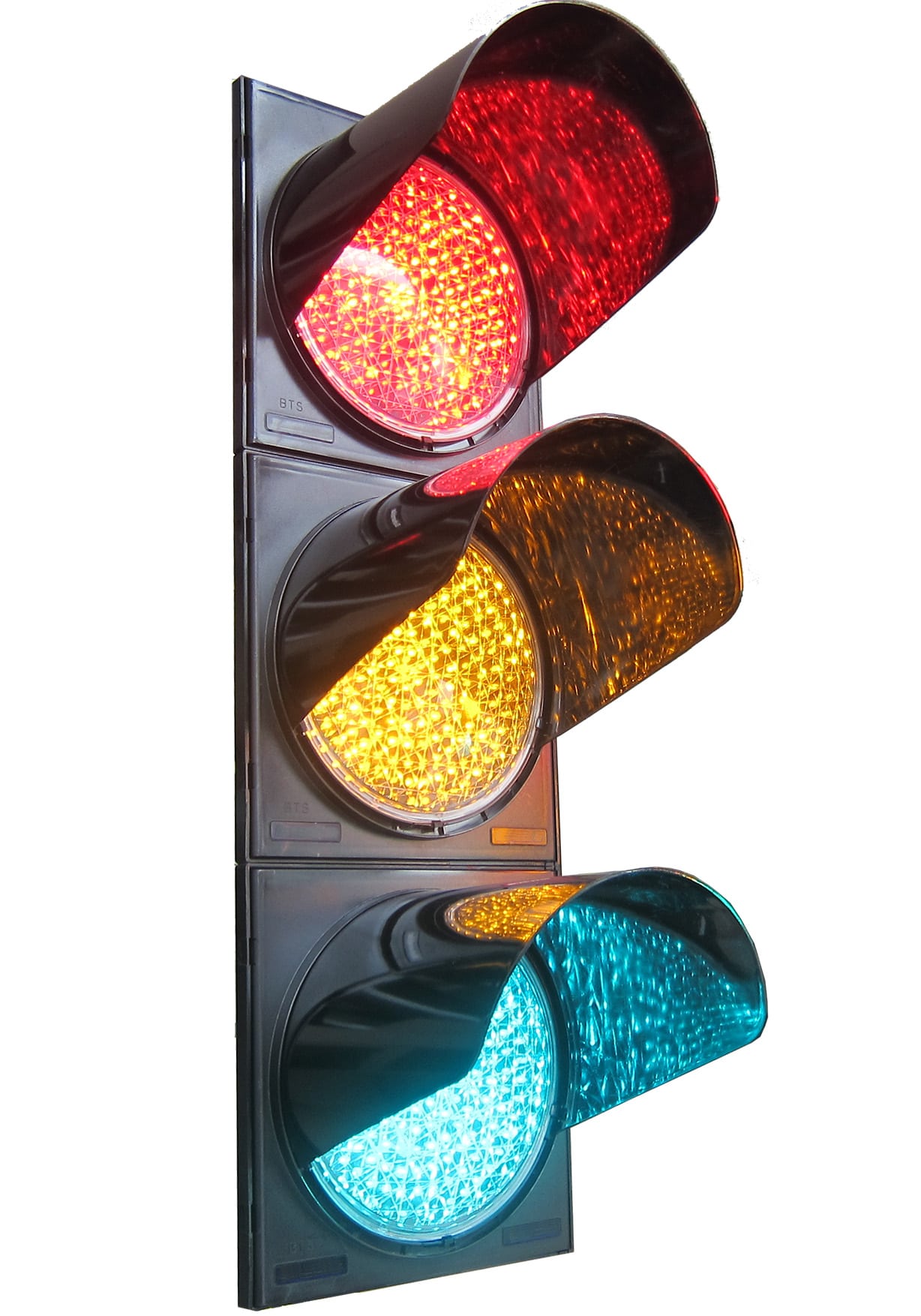

300 mm NOREX LED Signal Heads

200 mm NOREX 2 LED Signal Heads

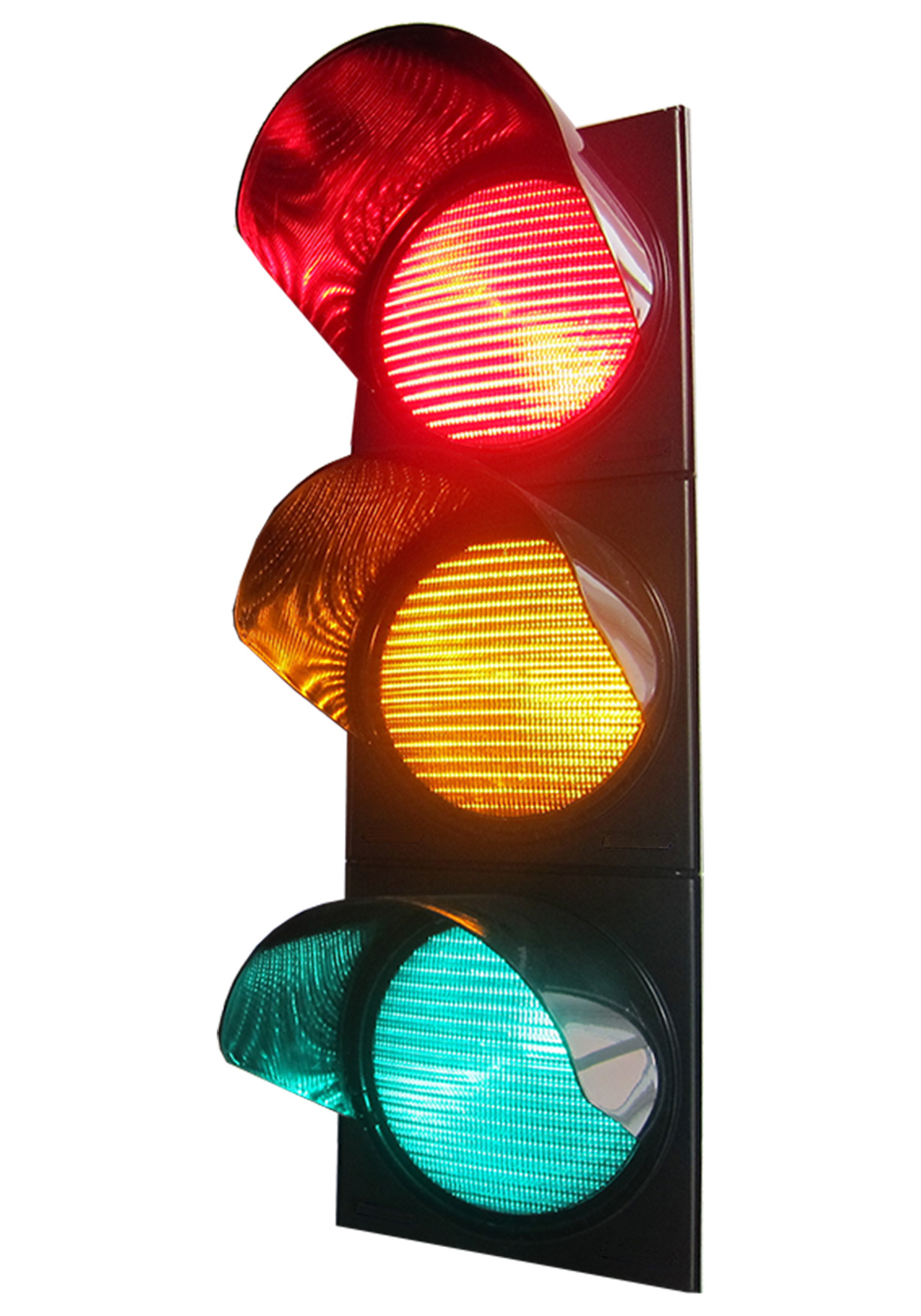

300mm NOREX 3P Power LED Signal Heads

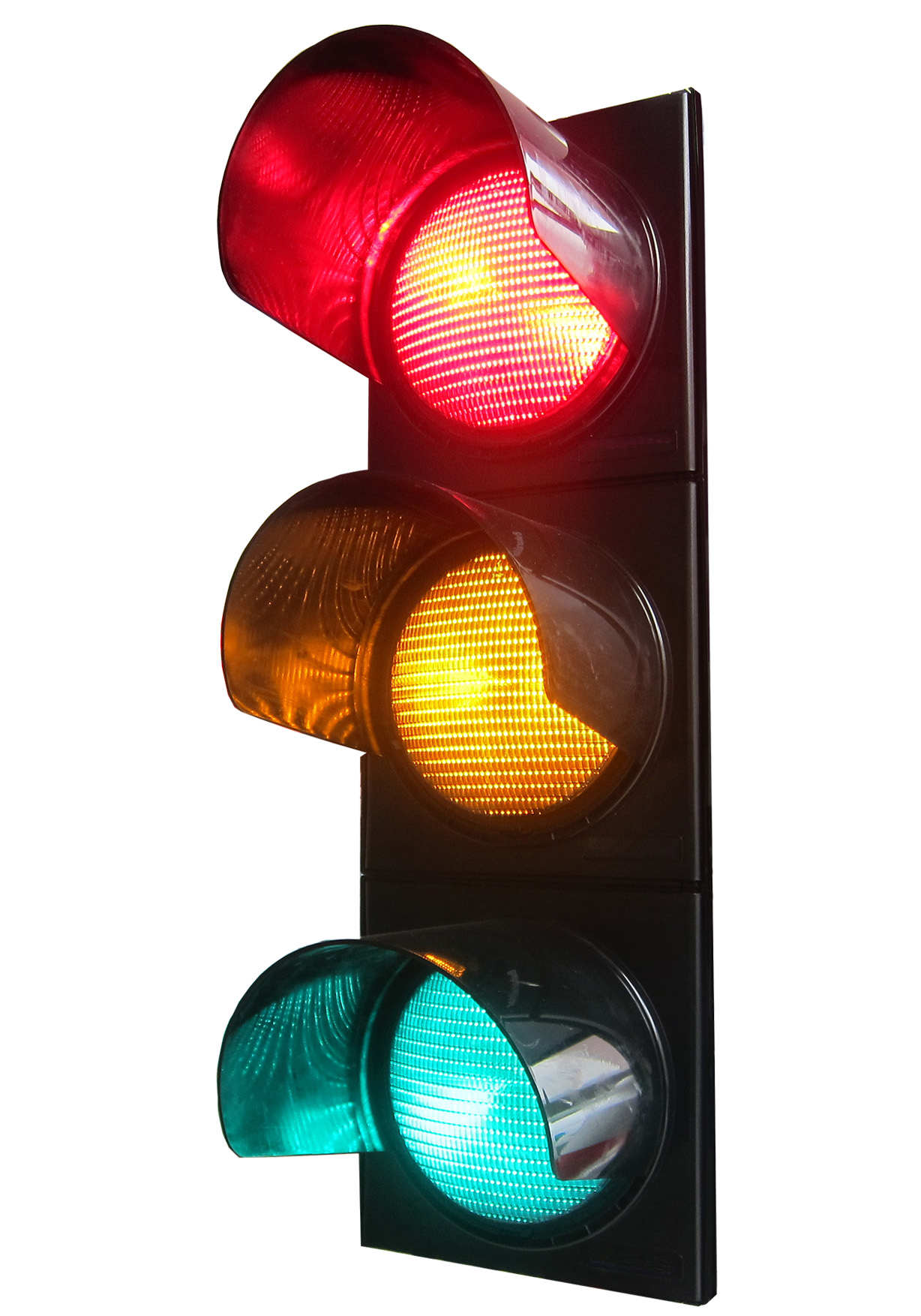

200mm NOREX 3P Power LED Signal Heads

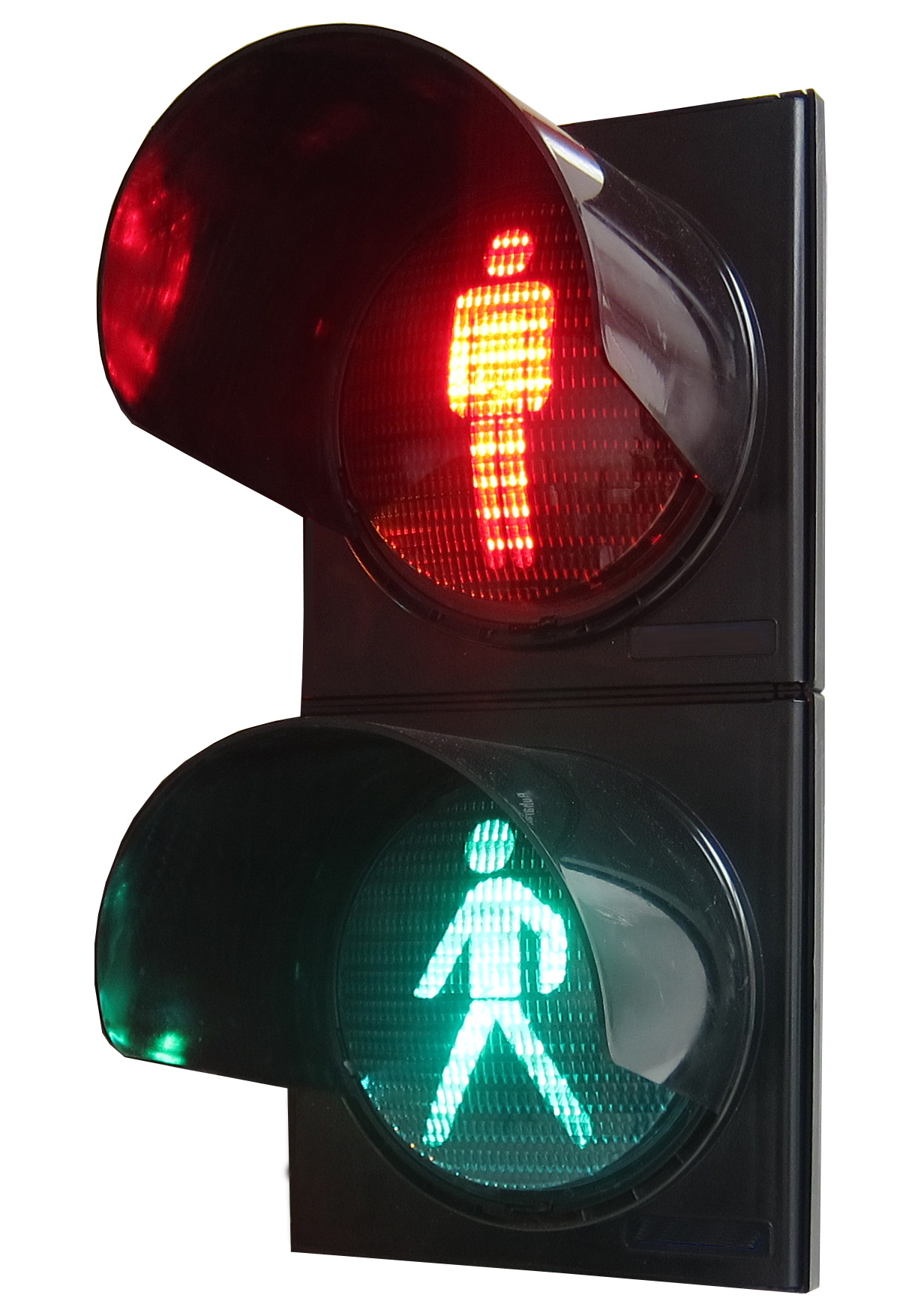

NOREX 2 power led PEDESTRIAN SIGNAL HEAD

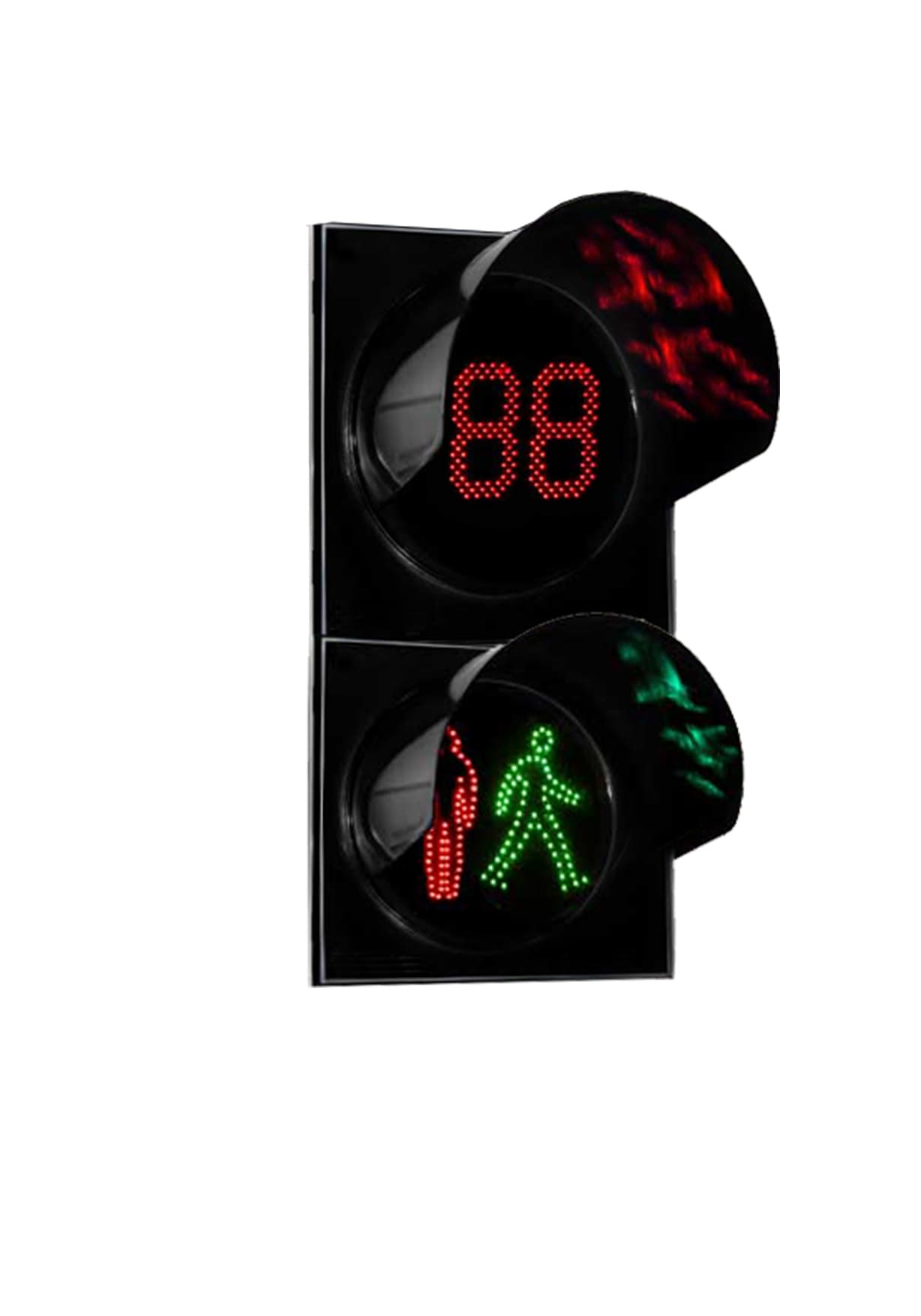

NOR Animated Pedestrian Signal Head with LEDs

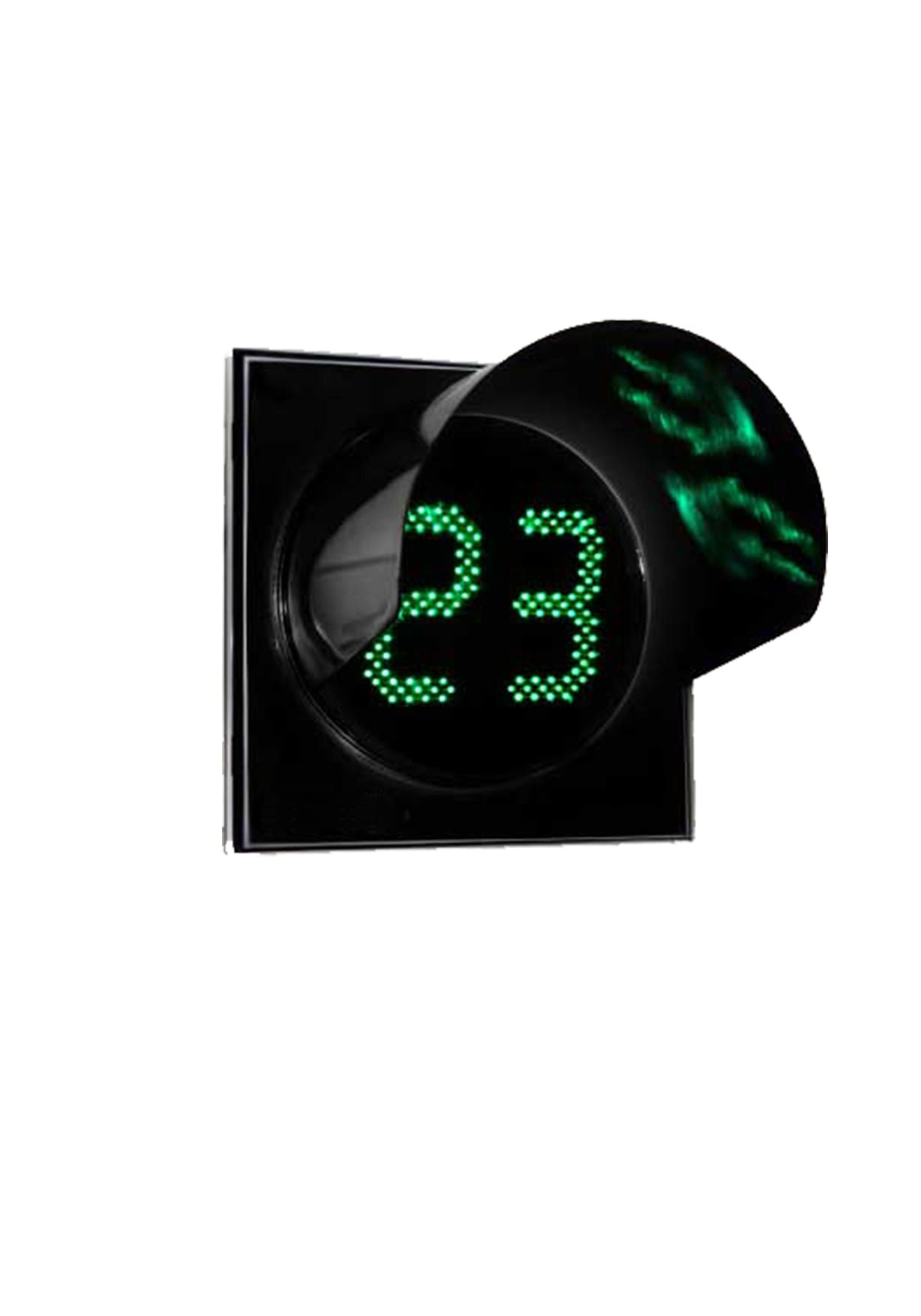

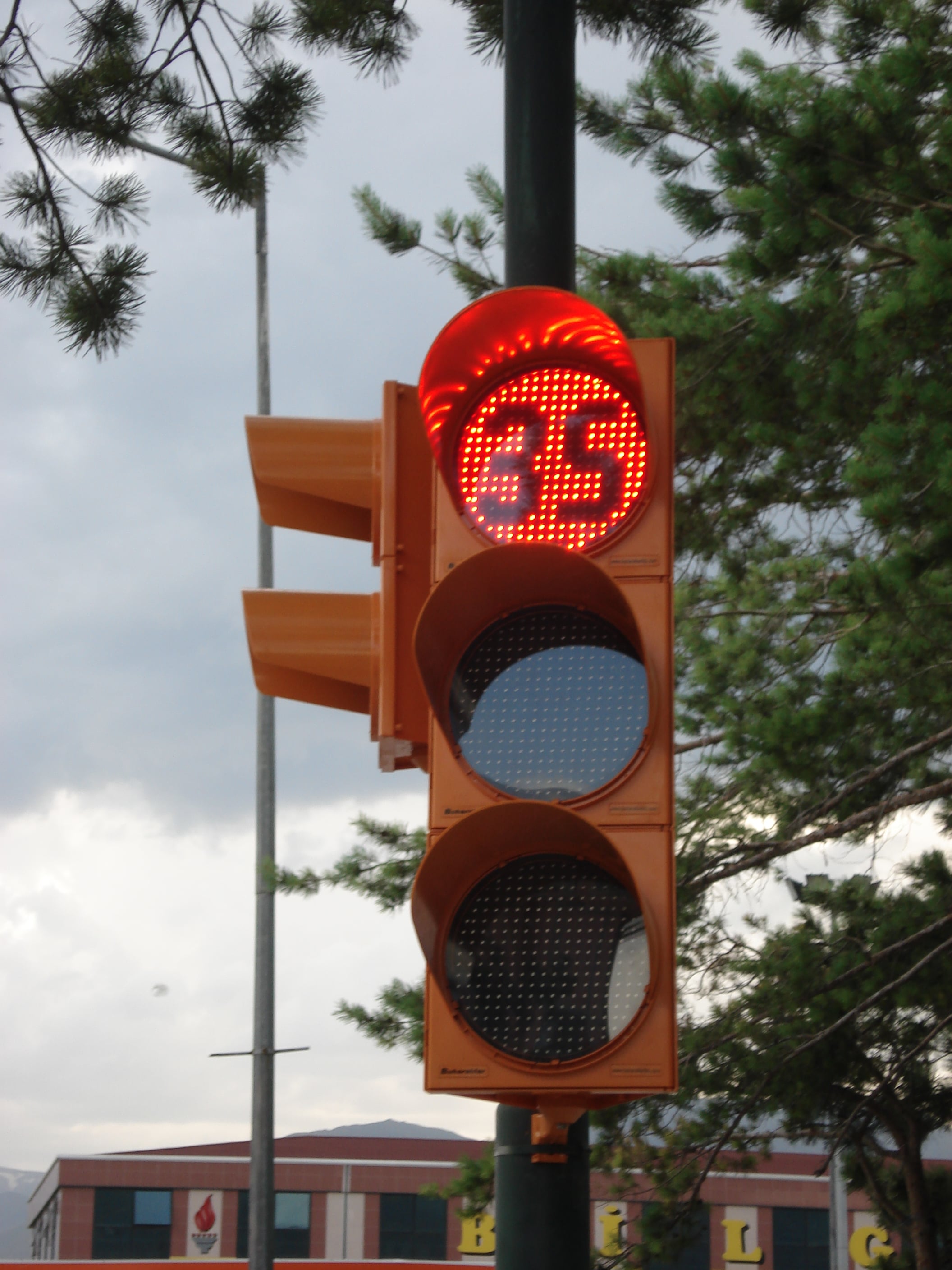

NOREX 2 LED Countdown Timers

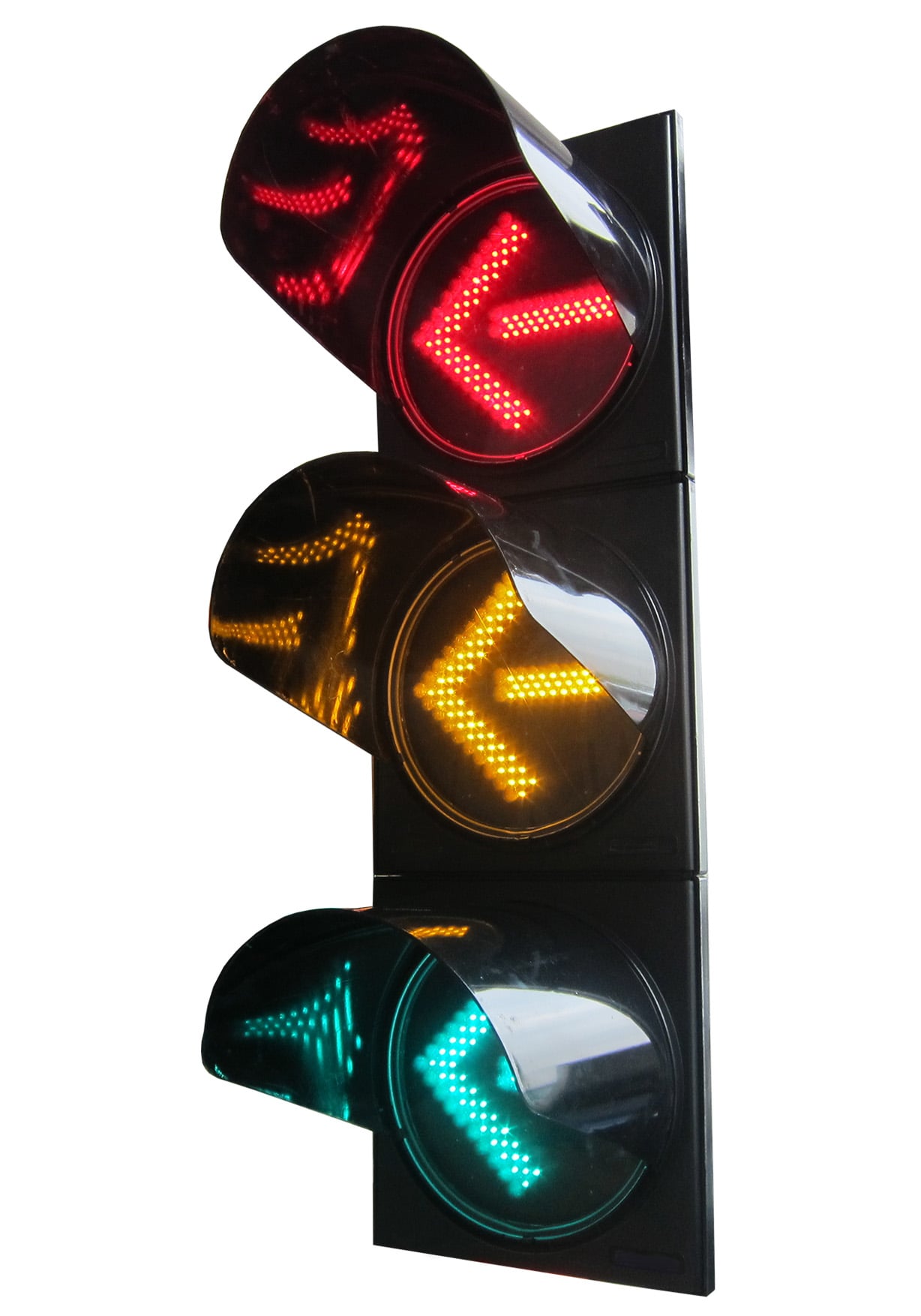

NOREX Multi-Arrow LED Signal Head

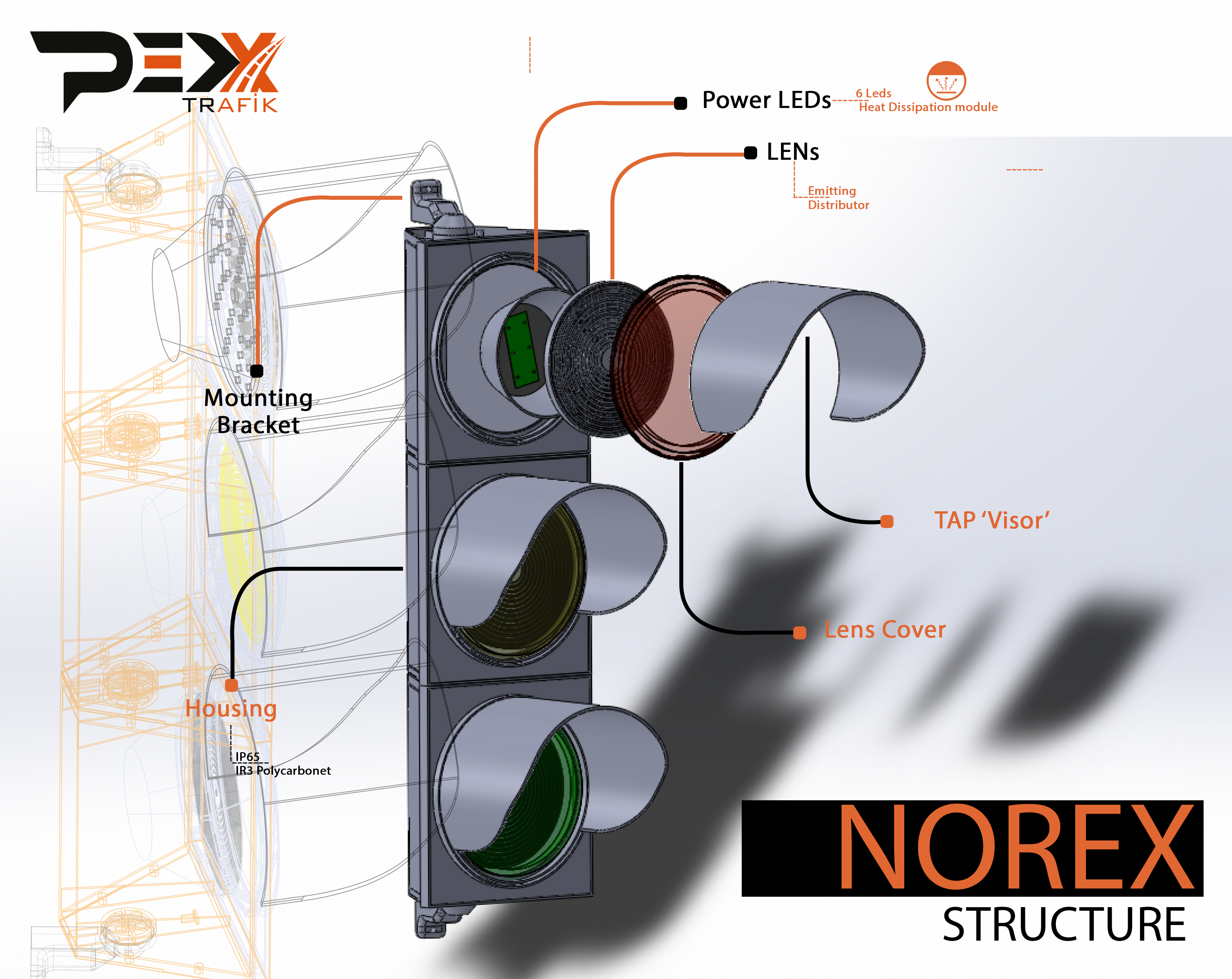

System Structure

TECHNICAL Specification

Type	Section	NOREX3P	NOREX3	NOREX2P	NOREX2	NOREX1
Optical Feature	LED Type	POWER LED	LED	POWER LED	LED	LED
	Type	Vehicle	Vehicle	(Vehicle and Pedestrian)	(Vehicle and Pedestrian)	Vehicle
	Diameter	300 mm	300 mm	200 mm	200 mm	100 mm
	Luminous intensity distribution	Type N, Cat B EN 12368, Tab. 5	Type N, Cat B EN 12368, Tab. 5	Type W, Cat B EN 12368, Tab. 3	Type W, Cat B EN 12368, Tab. 3	Type W, Cat B
	Ratio signal light / reflection	Class 5	Class 5	Class 5	Class 5	Class 5
	Phantom light	No colour phantom (black lens) No false signal in sunlight
	Standdard	EN 12368, 6.6
Mechanical Feature	Housing Colour	BLACK / ORANGE
	Housing / Mask Material Type	Polycarbonate UV.
	Resistance to mechanical impact	IR3
	Vibration resistance	Compatible with IEC 60068
	Protection class / Temp.	IP 65 / -40°C~+60°C

Electrical Feature	Operating Voltage	170V–265V AC
	Stopping Edge	80 V
	Operating Frequency	50 Hz
	Power Consumption	MAX 9W	Check TDS	MAX 7W	Check TDS	Check TDS
	Reaction	< 50ms
	Symbol	Traffic Light, Arrow, Pedestrian, Countdown
